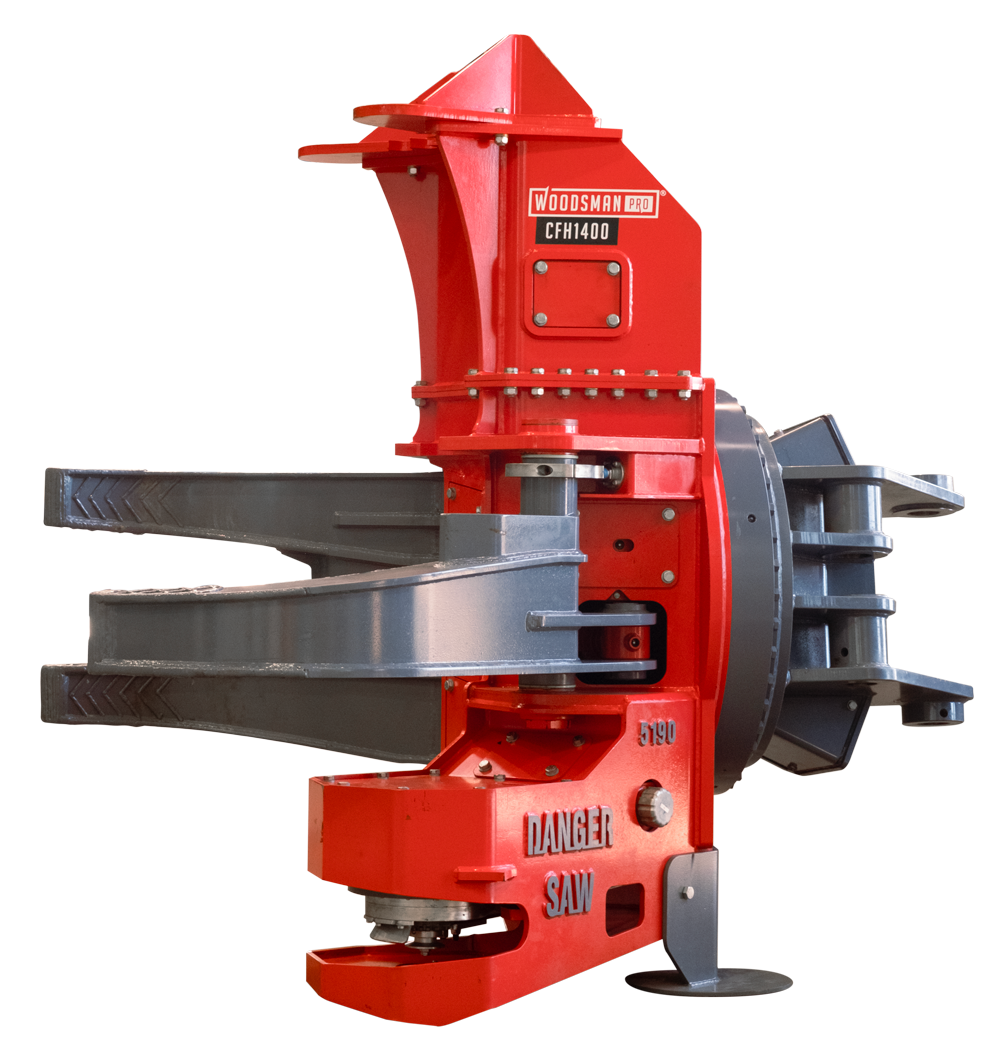

CFH1400

Introducing the one-head solution for controlled felling, shovelling, bunching and sorting.

With 360° continuous rotation, the controlled felling head weighs 3.2 tonnes (7,055 lb) and can be installed on a 25+ tonne (55,116 lb) purpose-built or forestry guarded excavator.

With a large capacity 60cc saw motor the CFH1400 will cut stems up to 940 mm in a single cut and stems up to 1400 mm with multiple cuts. The saw bar has a 243° cutting window, allowing front cuts without needing to reposition the base.

Sensors include a diameter sensor and a saw bar sensor for real-time display of the saw position.

Supplied pre-installed with the LOGGIC Felling Head control system with PDF maps and GPS positioning.

SAW MAX CUT:
Ø940 mm

MAX ARM OPENING:
1388 mm (54.6 in)

WEIGHT:
3200 kg (7055 lb)

  • 360° continuous rotation
  • Large capacity 60 cc saw motor
  • 243 degree saw bar rotation
  • Saw bar position sensor for real-time display of saw position
  • Diameter sensor for recording diameter at breast height (DBH)
  • All hydraulic and electrical connections are fed through a central rotating joint
  • Rotate Float function disengages motors for free head rotation when shovelling
  • Installed with the Loggic Felling Head control system, with PDF maps and GPS positioning and StanForD compliant reporting
Dimensions
  • Weight: 3,385 kg (7463 lb)
  • Height: 2214 mm (87.1 in)
  • Max opening: 1388 mm (54.6 in)
  • Min clamping: Ø170 mm
Head Rotation
  • Rotation: 360° continuous 62 kN
Saw
  • Saw chain pitch: 3/4”
  • Max saw cut: Ø940 mm (43 in bar)
  • Saw rotation: 243°
Base Machine Requirements
    • Min flow: 250 L/min
    • Preferred flow: 300 L/min
    • Max pressure: 350 bar

For detailed specifications, please click here

Request Operator’s Manual
FEATURES
  • 360° continuous rotation
  • Large capacity 60 cc saw motor
  • 243 degree saw bar rotation
  • Saw bar position sensor for real-time display of saw position
  • Diameter sensor for recording diameter at breast height (DBH)
  • All hydraulic and electrical connections are fed through a central rotating joint
  • Rotate Float function disengages motors for free head rotation when shovelling
  • Installed with the Loggic Felling Head control system, with PDF maps and GPS positioning and StanForD compliant reporting
SPECS
Dimensions
  • Weight: 3,385 kg (7463 lb)
  • Height: 2214 mm (87.1 in)
  • Max opening: 1388 mm (54.6 in)
  • Min clamping: Ø170 mm
Head Rotation
  • Rotation: 360° continuous 62 kN
Saw
  • Saw chain pitch: 3/4”
  • Max saw cut: Ø940 mm (43 in bar)
  • Saw rotation: 243°
Base Machine Requirements
    • Min flow: 250 L/min
    • Preferred flow: 300 L/min
    • Max pressure: 350 bar
