566

Our smallest, feature-rich harvest head

Built off the same proven platform as the bigger Woodsman Pro heads, the 566 delivers the performance operators know and trust in a lighter, more compact package. If you’ve been hanging out for a smaller version of the 750/850 that’s easy to run, fast through the wood, and tough enough to take a real hiding in the bush – this is your machine.

Enquire Now

Designed for 25–35 tonne machines, the 566 gives you a lighter, more manoeuvrable setup ideal for thinning and everyday harvesting work.

The level of performance at your fingertips with the 566 is unparalleled. You get more throughput, reduced reject rates, and a host of features like one-bolt delimb knives to slash your downtime and keep your production humming.

Check out the full specs below.

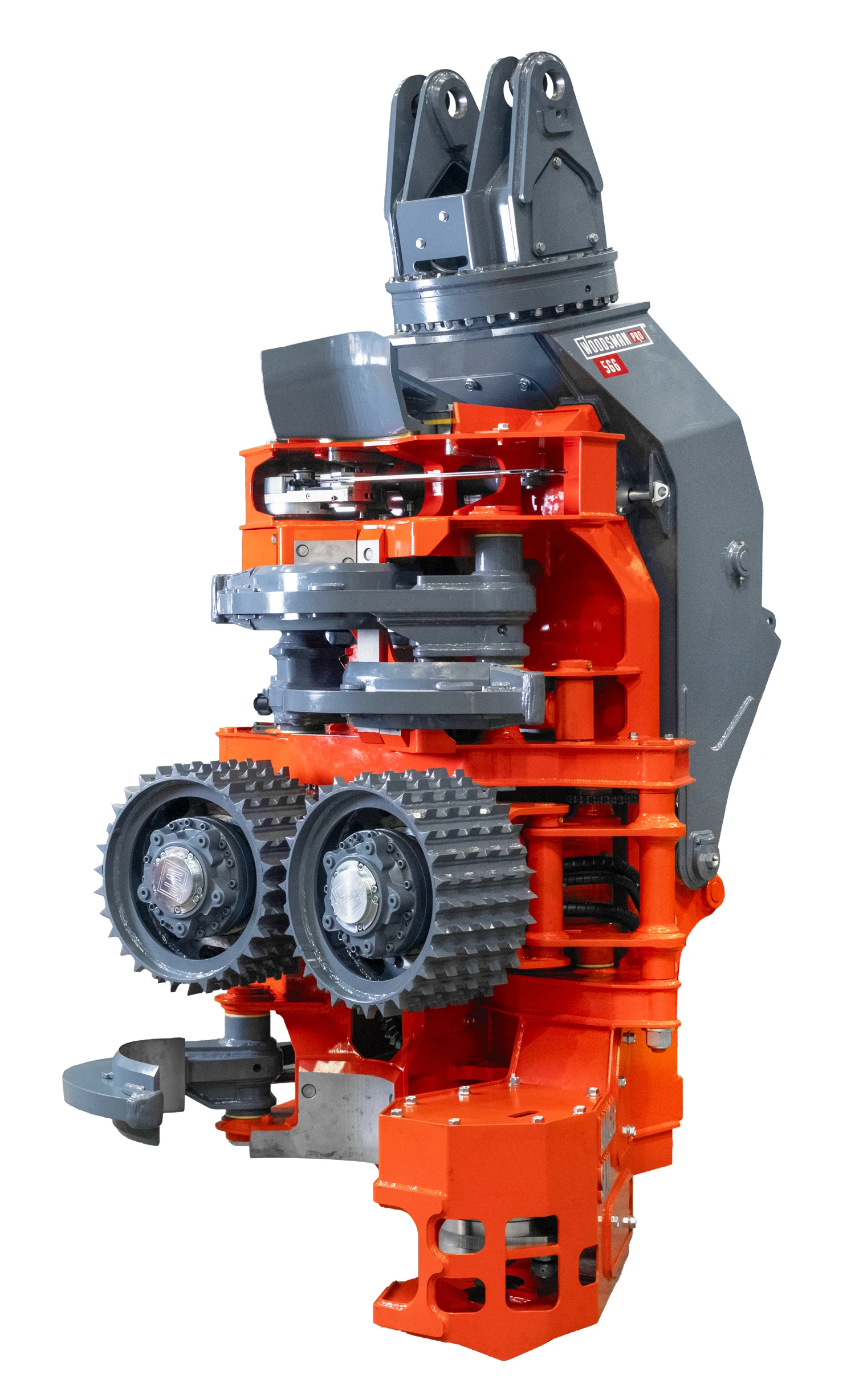

Woodsman Pro 566

MAX SAW CUT:
Ø640 mm (Ø25.2 in)

MAX OPENING:
654 mm (25.7 in)

FEED SPEED:
6.3 m/s (20.7 ft/s)

WEIGHT:
3120 kg (6878 lb)

  • Best-in-class single-pass, full coverage delimbing
  • Unparalleled throughput and reduced reject rates
  • Integrated topping saw and main saw capability for harvesting and processing applications
  • 360-degree continuous rotation
  • 40cc main saw / 30cc top saw
  • One-bolt replaceable delimb knife insert system
  • Lower delimb knife allows delimbing right to the saw cut, eliminating double handling of logs
  • Automatic chain tensioning on top and main saws
  • Dual diameter sensors for increased diameter accuracy and reliability
  • On-board fault diagnosis for head and base machine
  • Replaceable/serviceable wear plates and pads
  • Easy access to all maintenance points
  • Hose-free saw swing arm
  • Reversible saw sprocket
  • Equipped with Loggic control software

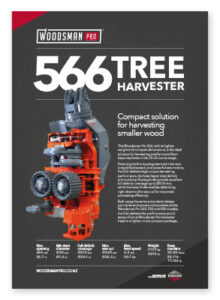

For detailed specifications, please click here

Request Operator’s Manual
Dimensions
  • Weight: (excl knuckle) 3120 kg (6878 lb)
  • Max harvest tilt: 145°
  • Rotation: Continuous 360°
Feeding
  • Max force @ 350 bar: 29 kN (6519.4 lbf)
  • Feed speed @ 350 l/m: 6.3 m/s (20.7 ft/s)
Delimb
  • Max knife opening: 654 mm (25.7 in)
  • Min stem diameter: Ø40 mm (Ø1.6 in)
  • Max full cov. delimbing dia: Ø510 mm (Ø20.1 in)
  • Knives: 3 delimb, 1 floating top, 1 fixed lower
Main Saw
  • Max saw cut: Ø640 mm (Ø25.2 in)
  • Bar length: 32/34 in
  • Chain pitch: 0.75 in (.404 in optional)
Top Saw
  • Max cut: Ø520 mm (Ø20.5 in)
  • Bar length: 28 in
  • Chain pitch: 0.75 in (.404 in optional)
FEATURES
  • Best-in-class single-pass, full coverage delimbing
  • Unparalleled throughput and reduced reject rates
  • Integrated topping saw and main saw capability for harvesting and processing applications
  • 360-degree continuous rotation
  • 40cc main saw / 30cc top saw
  • One-bolt replaceable delimb knife insert system
  • Lower delimb knife allows delimbing right to the saw cut, eliminating double handling of logs
  • Automatic chain tensioning on top and main saws
  • Dual diameter sensors for increased diameter accuracy and reliability
  • On-board fault diagnosis for head and base machine
  • Replaceable/serviceable wear plates and pads
  • Easy access to all maintenance points
  • Hose-free saw swing arm
  • Reversible saw sprocket
  • Equipped with Loggic control software
DOWNLOAD

For detailed specifications, please click here

Request Operator’s Manual
SPECS
Dimensions
  • Weight: (excl knuckle) 3120 kg (6878 lb)
  • Max harvest tilt: 145°
  • Rotation: Continuous 360°
Feeding
  • Max force @ 350 bar: 29 kN (6519.4 lbf)
  • Feed speed @ 350 l/m: 6.3 m/s (20.7 ft/s)
Delimb
  • Max knife opening: 654 mm (25.7 in)
  • Min stem diameter: Ø40 mm (Ø1.6 in)
  • Max full cov. delimbing dia: Ø510 mm (Ø20.1 in)
  • Knives: 3 delimb, 1 floating top, 1 fixed lower
Main Saw
  • Max saw cut: Ø640 mm (Ø25.2 in)
  • Bar length: 32/34 in
  • Chain pitch: 0.75 in (.404 in optional)
Top Saw
  • Max cut: Ø520 mm (Ø20.5 in)
  • Bar length: 28 in
  • Chain pitch: 0.75 in (.404 in optional)
