FH1350

Designed for high production felling, shovel logging and grapple operations on any terrain, this felling head has a proven track record of strength and reliability with minimal maintenance costs.

Our continuous 360° rotation felling head weighs 2.4 tonnes and can be attached to any 25-35 tonne base machine.

The powerful 60 cc saw motor will cut through the largest stems and together with dual clamp arm cylinders, provide greater holding power, critical to tree felling.

A control valve is mounted in the head and installation costs are kept to a minimum – only three hydraulic and one electrical connection required.

SAW MAX CUT:
Ø930 mm (Ø36.6 in)

MAX ARM OPENING:
1350 mm (53.1 in)

WEIGHT:
2408 kg (5309 lb)

  • Continuous 360° rotation for manoeuvrability.
  • 3 hydraulic connections to the base machine.
  • Individual clamp arm cylinders for greater hold power.
  • Powerful saw motor (60 cc).
Dimensions
  • Weight: 2408 kg (5309 lb)
  • Max opening: 1351 mm (53.1 in)
Saw
  • Saw pitch: 0.75 in
  • Max saw cut: Ø930 mm (Ø36.6 in)
  • Bar length: 38, 40, 43 in
  • Bar oil tank cap: 24 L

For detailed specifications, please click here

FEATURES
  • Continuous 360° rotation for manoeuvrability.
  • 3 hydraulic connections to the base machine.
  • Individual clamp arm cylinders for greater hold power.
  • Powerful saw motor (60 cc).
SPECS

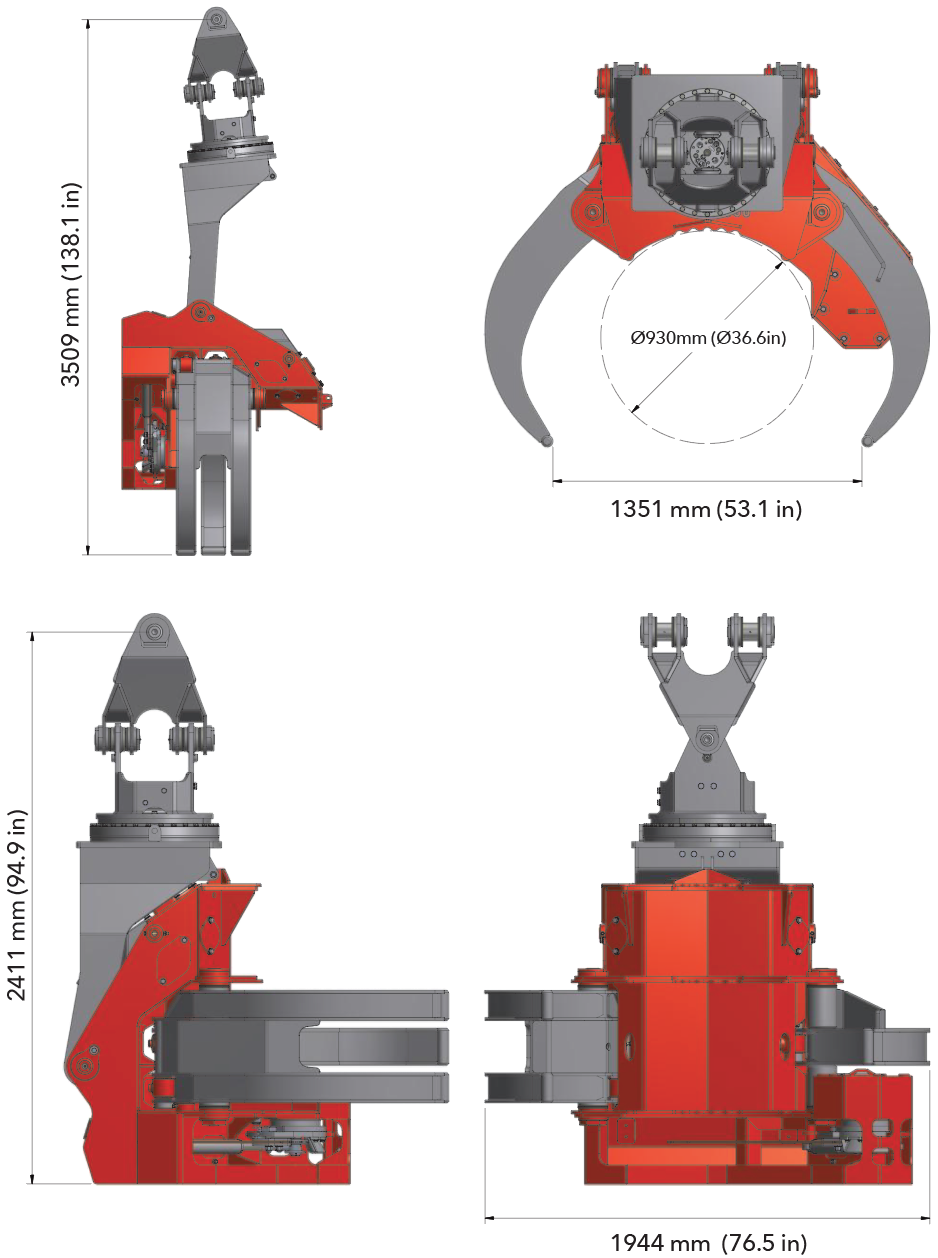

Dimensions
  • Weight: 2408 kg (5309 lb)
  • Max opening: 1351 mm (53.1 in)
Saw
  • Saw pitch: 0.75 in
  • Max saw cut: Ø930 mm (Ø36.6 in)
  • Bar length: 38, 40, 43 in
  • Bar oil tank cap: 24 L
DOWNLOAD

For detailed specifications, please click here
